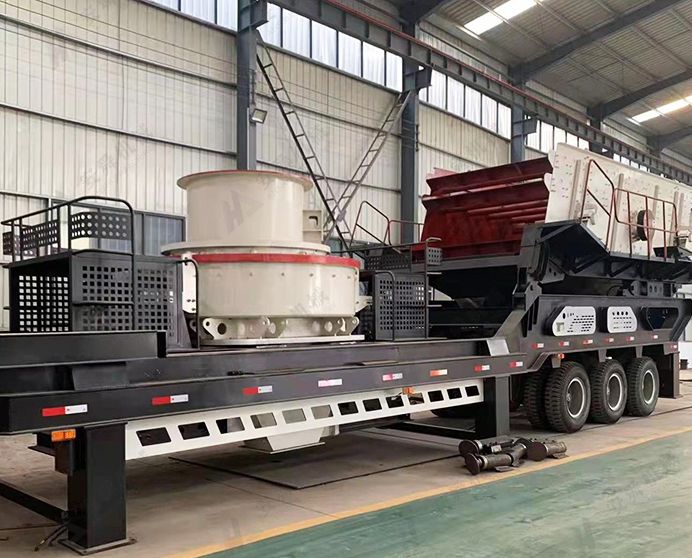

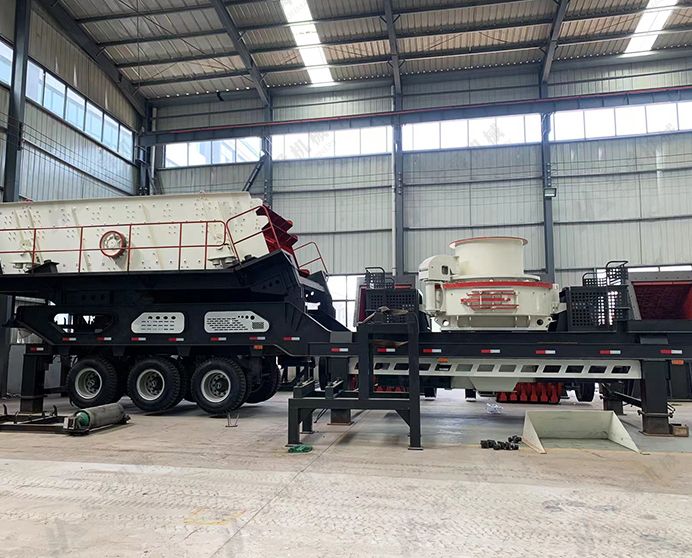

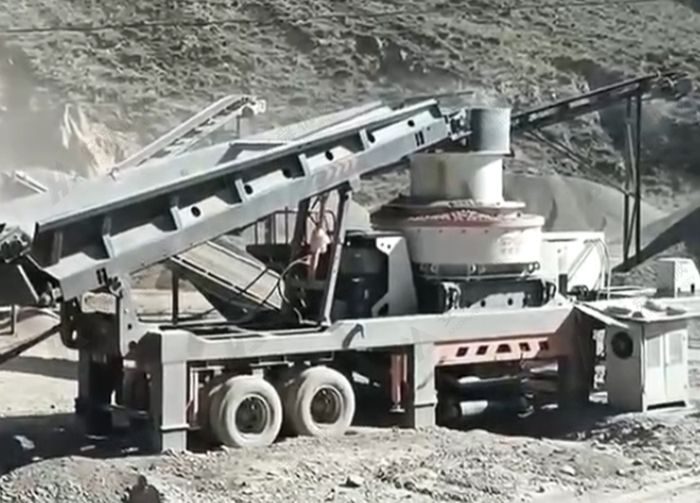

Mobile VSI Sand Making Plant
Model: S-V Series · Sand Making · Hard Rock
-
Capacity
120-750t/h
-
Feed Size
≤50mm
-
Power
Optional
- ISO9001
- CE
- EAC
We reply within 24 hours
Product Overview
What is a Mobile VSI Sand Making Plant?
The Mobile VSI Sand Making Plant from Henan Anshun Machinery is a wheeled crushing solution designed for manufactured sand production, aggregate shaping, and fine crushing.
Built around a VSI sand making machine, the plant integrates crushing, screening, and conveying systems onto a single chassis for flexible movement and fast installation.
It is mainly used after jaw crushers and cone crushers to produce high-quality 0–5 mm sand and improve aggregate particle shape for concrete, asphalt, and infrastructure projects.
Applicable Materials
River Stone, Granite, Basalt, Limestone, Quartz, Pebbles, Dolomite, Concrete Aggregate, Construction Stone, and other medium-hard materials suitable for sand making and aggregate shaping.
Industries
Manufactured Sand Production, Aggregate Production, Quarry Crushing, Road & Infrastructure Construction, Concrete Batching Plants, Asphalt Plants, Hydropower Projects, Construction Materials Processing.
Technical Specifications
|
Mobile VSI Sand Making Plant Technical Parameters |
|||||
|
Standard Model |
Corollary Equipment |
Corollary Equipment |
Overall Dimension (mm) |
||
|
Model |
Feeding Size (mm) |
Capacity (t/h) |
|||
|
S-V7611 |
3YZK1548 |
VSI7611 |
35 |
120-180 |
12500 x 2600 x 4300 |
|
S-V8518 |
3YZK1848 |
VSI8518 |
40 |
200-260 |
14200 x 3000 x 4500 |
|
S-V9526 |
3YZK1860 |
VSI9526 |
45 |
300-380 |
14500 x 3000 x 4500 |
|
S-V1140 |
3YZK2160 |
5X1140 |
50 |
450-520 |
15500 x 3100 x 4500 |
|
S-5V7615 |
3YZK1548 |
5X7615 |
35 |
150-280 |
12500 x 2600 x 4300 |
|
S-5V8522 |
3YZK1848 |
5X8522 |
40 |
240-380 |
14200 x 3000 x 4500 |
|
S-5V9532 |
3YZK1860 |
5X9532 |
45 |
350-540 |
14500 x 3000 x 4500 |
|
S-5V1145 |
3YZK2160 |
5X1145 |
50 |
500-640 |
15500 x 3100 x 4500 |
|
S-5V1150 |
3YZK2260 |
5X1150 |
50 |
550-750 |
15800 x 3200 x 4500 |
Key Features & Advantages
-
Designed for Sand Making & Aggregate Shaping
Specially designed for producing 0–5 mm manufactured sand and improving aggregate particle shape after cone crushing.
-
Excellent Particle Shape
The VSI crusher uses high-speed impact crushing to reduce flaky and elongated particles, producing cubical aggregate suitable for concrete and asphalt applications.
-
Dual Crushing Modes Available
Supports both “rock-on-rock” and “rock-on-iron” crushing modes to meet different requirements for sand production, shaping efficiency, and wear cost.
-
Ideal for Secondary Finished Crushing
With a maximum feed size of 35–50 mm, the plant is typically used after jaw crushers and cone crushers for final-stage crushing and shaping.
-
Closed-Circuit Sand Production
Integrated vibrating screen automatically returns oversized material for re-crushing, ensuring stable sand gradation and consistent product quality.
-

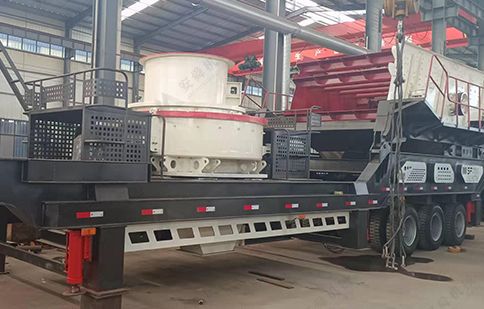

Flexible Mobility for Quarry Projects
Wheeled chassis design enables fast relocation between quarry sites and temporary aggregate production projects.
What Is the Working Principle Of the Mobile VSI Sand Making Plant
The Mobile VSI Sand Making Plant crushes material through high-speed impact force generated by the VSI sand making machine.
Material is fed into the crusher through the feeding system and accelerated by the high-speed rotor. The material is then thrown against the impact liner or collides with other materials inside the crushing chamber, achieving crushing and shaping through the “rock-on-rock” or “rock-on-iron” crushing principle.
After crushing, the material is conveyed to the vibrating screen for classification. Qualified sand and aggregate are discharged as final products, while oversized material is returned to the VSI crusher for further crushing.
This closed-circuit production process ensures uniform particle size, excellent grain shape, and stable sand production efficiency.
Get Quote
FAQ
What is the Difference Between a VSI Sand Making Machine and a Cone Crusher?
A VSI sand making machine is mainly used for fine crushing and sand shaping, producing high-quality manufactured sand with better particle shape. A cone crusher is generally used for secondary or tertiary crushing of hard rock materials.
Can a Mobile VSI Sand Making Plant Produce Manufactured Sand?
Yes. The plant is specifically designed for producing machine-made sand with uniform particle size and excellent grain shape for concrete, asphalt, and construction applications.
What Materials are Suitable for a Mobile VSI Sand Making Plant?
The plant is suitable for granite, basalt, river stone, limestone, quartz, pebbles, and other medium-hard to hard materials.
What is the Difference Between VSI and 5X VSI Sand Making Machines?
The 5X VSI series generally offers higher production efficiency, optimized crushing chamber design, and improved shaping performance compared with standard VSI models.
What Output Size Can the Plant Produce?
The plant is mainly used for producing 0–5 mm manufactured sand and fine aggregate, while different screen configurations can produce multiple finished products.
Is a Mobile VSI Plant Suitable for Aggregate Shaping?
Yes. Besides sand production, the VSI crusher is widely used for reshaping aggregate particles, reducing flaky materials, and improving aggregate quality.
How do I Choose the Right Mobile VSI Sand Making Model?
Model selection depends on material type, feed size, required capacity, and final product standards. Our engineers can recommend the most suitable solution according to your project requirements.
Can the Plant be Customized According to My Project?
Yes. The mobile cone crusher plant can be customized with different cone crusher models, vibrating screens, conveyors, electrical systems, and optional equipment according to your material and capacity requirements.
