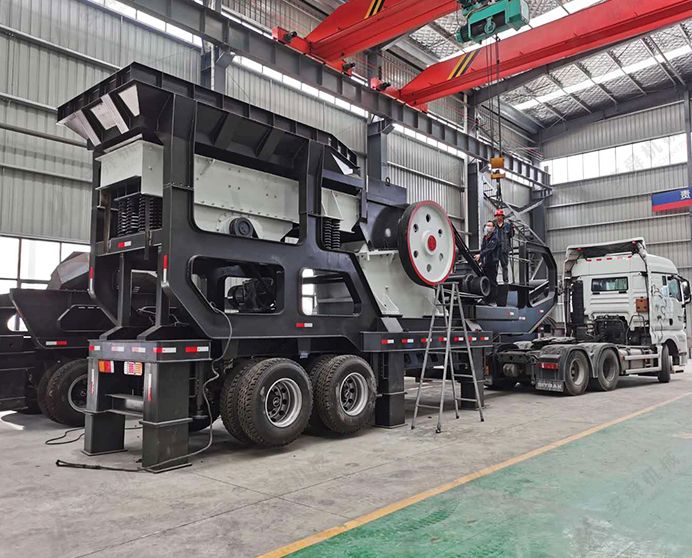

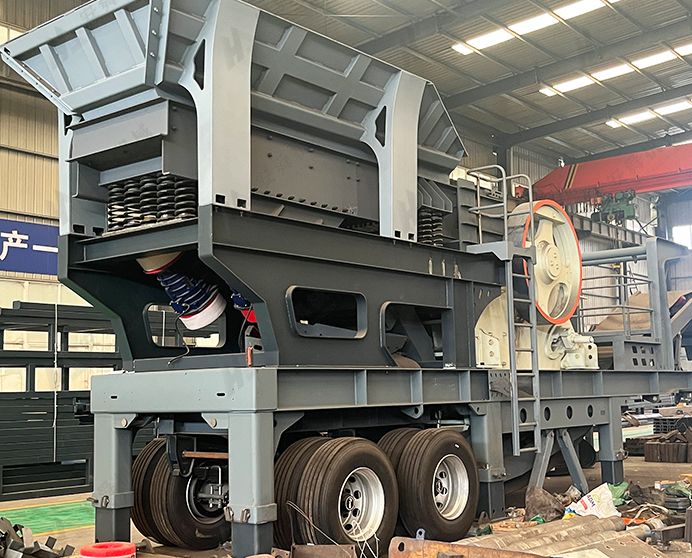

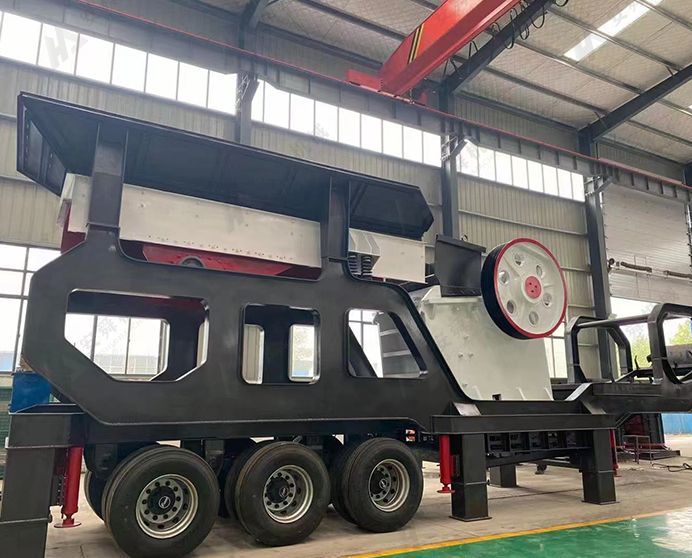

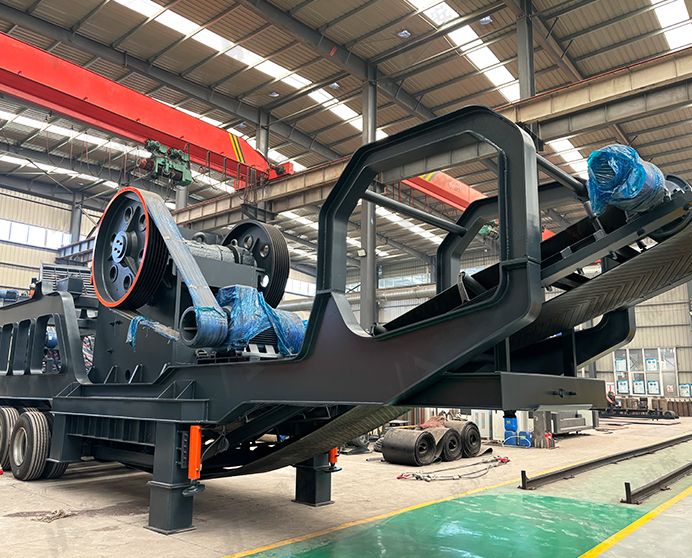

Mobile Jaw Crusher Plant
Model: SC Series · Primary Crushing · Hard Rock & Ore
-
Capacity
100-395t/h
-
Feed Size
≤720mm
-
Power
Optional
- ISO9001
- CE
- EAC
We reply within 24 hours
Product Overview
What is a Mobile Jaw Crusher Plant?
Mobile jaw crushers can be equipped with PE jaw crusher series, PEX euro jaw crusher series, and 6CX European jaw crushers with high crushing efficiency, versatility, excellent crushing product quality, and a light and reasonable structural design. Reliable and stable quality assurance has established a good reputation for new and old customers at home and abroad. It is not only mature in technology and easy to operate and maintain but also has good adaptability, safety, and reliability for transportation volume, material particle size, and abrasiveness. The integrated unit configuration is convenient and reasonable for installation and maintenance. The configured unit has high durability and higher working time.

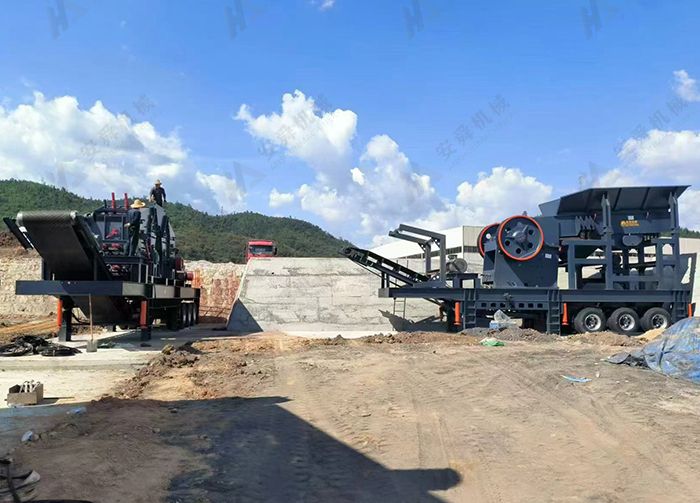

Whether you’re processing hard granite in a remote quarry, recycling construction debris on an urban demolition site, or following a pipeline project across changing locations, the Anshun mobile jaw crusher brings the crusher to the material — not the other way around.
Applicable Materials
River pebble, Limestone, Granite, Basalt, Diabase, Andesite, Iron ore, Construction & demolition waste, Mine tailings.
Industries
Mining, Aggregate, Infrastructure, C&D Waste, Hydropower Projects.
Technical Specifications
|
Mobile Jaw Crusher Plant Technical Parameters |
||||
|
Standard Model |
Corollary Equipment |
Adjustable Range of Discharge Opening (mm) |
Capacity (t/h) |
Overall Dimension (mm) |
|
SC69L |
ZSW3896+PE69 |
60-125 |
100-180 |
11814x2470x4080 |
|
SC96L |
ZSW3896+C96 |
60-175 |
140-245 |
11700x2470x4080 |
|
SC106L |
ZSW1149+C106 |
70-200 |
150-325 |
13000x2500x4230 |
|
SC116L |
ZSW1349+C116 |
70-200 |
205-345 |
15500x2600x4800 |
|
SC110L |
ZSW1349+C110 |
70-200 |
250-395 |
15000x2510x4600 |
Key Features & Advantages
-

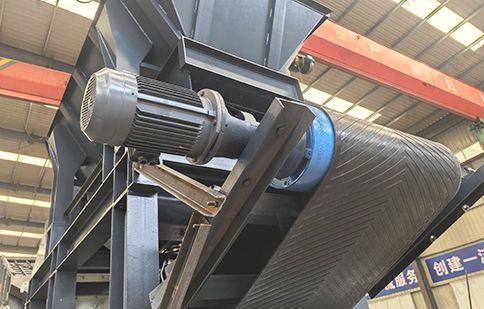

Easy to Move and High Crushing Efficiency
The high-performance jaw crusher, feeder, and vibrating screen form an integrated mobile crushing station that is easy to move and highly efficient.
-

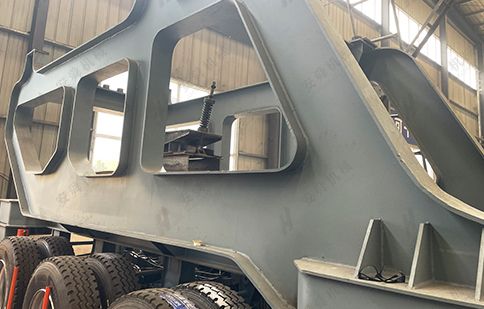

Save Transportation Costs and Convenient to Put Into Production
The steering traction shaft can be directly moved to the site for operation, saving material transportation costs and making it convenient to put into production.
-
A Good Helper for Coarse Crushing and a Wide Range of Applications
The jaw crusher mobile crushing station is a good helper for coarse crushing of stones, which can be used for road construction, construction, waste recycling projects, etc.
-

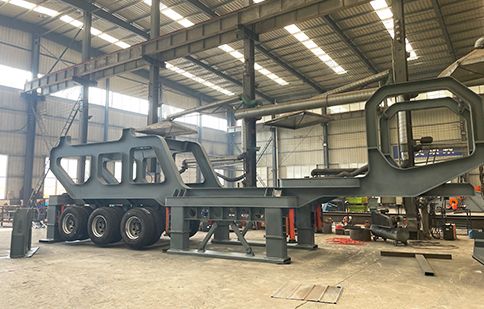

Flexible Configuration and Strong Crushing Capacity
The jaw crusher mobile crushing station can be configured with many models, with strong crushing capacity and high efficiency. It is a representative of vehicle-mounted mobile crushing equipment.
What Is the Working Principle Of the Mobile Jaw Crusher Plant
The working principle of the Mobile Jaw Crusher is that the material is evenly transported to the crusher through the feeder. After the jaw crusher performs preliminary crushing, it forms a closed-circuit system through the circular vibrating screen to achieve cyclic crushing of the material. The finished material is output by the conveyor for continuous crushing. The Wheeled Jaw Crusher Plants can remove the circular vibrating screen according to the actual production needs to achieve direct preliminary crushing of the material. It is convenient and flexible to use with other crushing equipment.
Get Quote
FAQ
How Long Does it Take to Set up and Start Crushing After Arrival on Site?

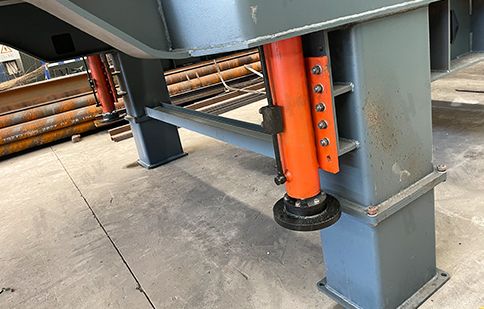

Under normal conditions, setup and commissioning takes 2–4 hours. This includes deploying the hydraulic support legs, connecting power, and running a short no-load test before feeding material.
Can the Plant be Towed by a Standard Semi-trailer Tractor?
Yes. The gooseneck drawbar is designed for connection to standard semi-trailer tractors. For most road classes, no special transport permits are required. We recommend confirming local road regulations for oversize loads before transport.
What is the Maximum Feed Size the Plant Can Accept?
Up to 1,200mm, depending on the jaw crusher model configured. Please confirm the expected maximum feed size when requesting a quote so we can select the appropriate jaw opening.
Can the Vibrating Screen be Removed for Open-circuit Operation?
Yes. The circular vibrating screen can be disconnected and the plant operated in open-circuit mode when feeding a secondary crusher or when the output size specification allows for direct discharge.
What Materials Can the Mobile Jaw Crusher Process?
River pebble, limestone, granite, basalt, diabase, andesite, iron ore, copper ore, construction and demolition waste, and mine tailings. For highly abrasive materials such as granite and quartzite, we recommend discussing wear part specifications before purchase.
How Often do the Jaw Plates Need to be Replaced?
Jaw plate service life varies significantly with material hardness and abrasiveness. For medium-hard limestone, jaw plates typically last 800–1,500 operating hours. For hard granite or basalt, expect 400–800 hours. We stock common jaw plate sizes for fast dispatch.
Do You Provide On-site Commissioning Service?
We provide remote commissioning guidance via video call at no charge. On-site engineer dispatch is available as an optional paid service — please contact us to confirm availability and cost based on your location.
