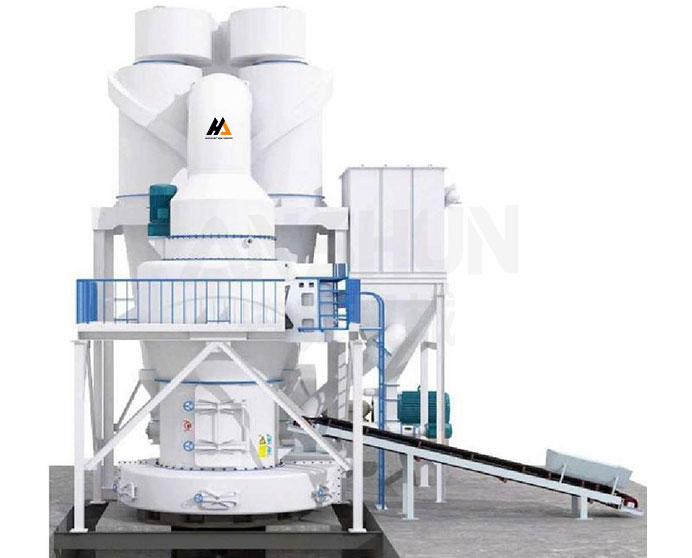

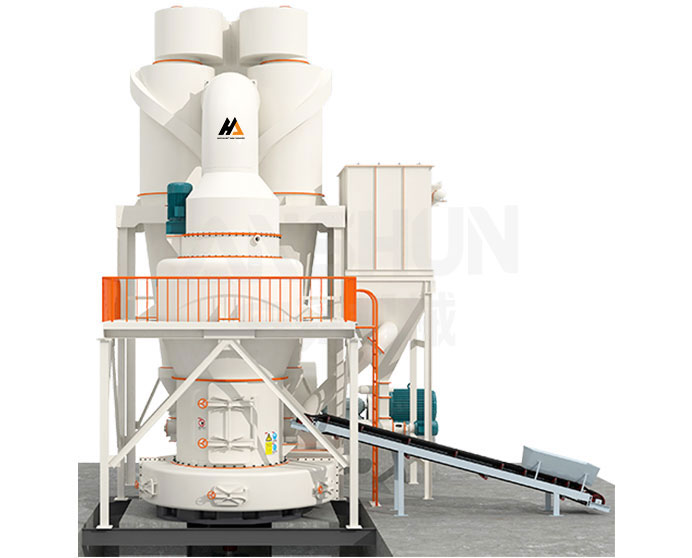

YGM-Q European Type Strength Grinding Mill
-
Capacity
0.5-45t/h
-
Feed Size
＜45mm
-
Power
22-250kw
- ISO9001
- CE
- EAC
We reply within 24 hours
Product Overview

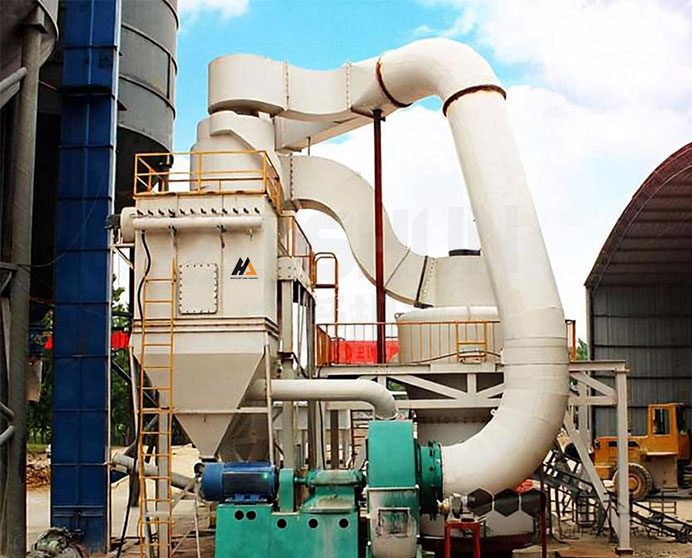

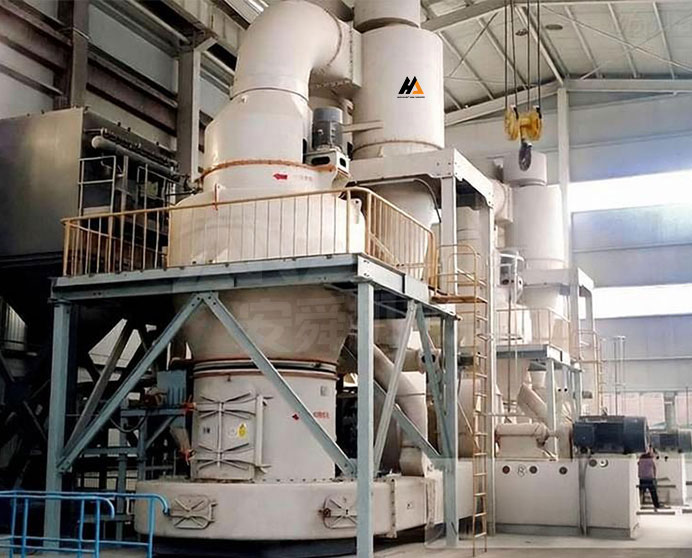

What Is a YGM-Q European Type Strength Grinding Mill?
The YGM-Q European Type Strength Grinding Mill is a high-yield, energy-saving, eco-friendly, and high-performance grinding equipment developed based on our long-term production practice of suspension roller mills, combined with the onsite application experience of numerous powder customers worldwide and excellent performance parameter configurations.
It is widely used in mining, building materials, electric power, roads and bridges, coal, metallurgy, chemical industry, ceramics, refractories, and other industries. It can efficiently process limestone, calcite, talc, barite, quartz, feldspar, iron ore, kaolin, bentonite, fly ash, bottom ash, pulverized coal, petroleum coke, and other non-flammable and non-explosive mineral materials with a Mohs hardness below 9.3 and moisture content below 6%.
Applicable Materials
Limestone, calcite, talc, barite, quartz, feldspar, iron ore, kaolin, bentonite, fly ash, bottom ash, pulverized coal, petroleum coke, and other non-flammable and non-explosive mineral materials with a Mohs hardness below 9.3 and moisture content below 6%.
Industries
Mining, building materials, electric power, roads and bridges, coal, metallurgy, chemical industry, ceramics, refractories, and other industries for fine and ultrafine powder processing.
Technical Specifications
|
Model |
Main Machine |
Classifier |
Air Blower |
||||
|
Speed of Main Mill(/min) |
Feeding Size(mm) |
Final Size(mesh) |
Capacity(t/h) |
Main Power(kw) |
Power(kw) |
Power(kw) |
|
|
YGMQ88 |
165 |
<20 |
12-425 |
0.4-5 |
22 |
2.2-5.5 |
22 |
|
YGMQ95 |
150 |
<25 |
0.6-7 |
30 |
2.2-7.5 |
30 |
|
|
YGMQ1000 |
132 |
<25 |
0.8-9 |
37-45 |
5.5-11 |
37-45 |
|
|
YGMQ1300 |
106 |
<30 |
2-18 |
75-90 |
7.5-18.5 |
75-90 |
|
|
YGMQ1500 |
105 |
<35 |
5-23 |
110-132 |
22-30 |
110-132 |
|
|
YGMQ1750 |
92 |
<35 |
7-30 |
132-160 |
30-37 |
160-200 |
|
|
YGMQ1900 |
78 |
<40 |
11-40 |
185-200 |
37-45 |
200-220 |
|
|
YGMQ2000 |
72 |
<45 |
12-45 |
315 |
45-55 |
250-280 |
|
|
① The processing capacities listed in the table are based on the grinding of limestone (SiO₂ < 1%) to a product fineness of 80% passing through the sieve. |
|||||||
Key Features & Advantages
-

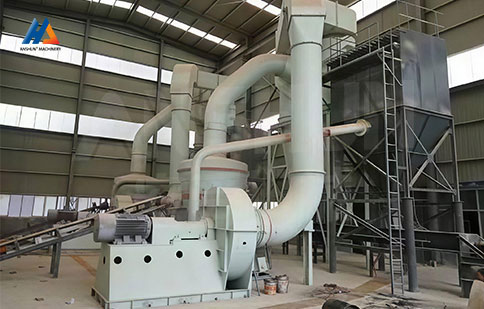

Upgraded Core Grinding Component Structure
The YGM-Q European-style heavy-duty mill features a robust grinding assembly designed with a focus on grinding efficiency and service life, achieving several key technical breakthroughs. The suspension assembly has been upgraded to a conical structure, significantly enhancing durability and reducing air resistance. The grinding roller assembly utilizes a floating seal combined with a multi-component sealing structure to effectively prevent dust ingress, extending service life by more than three times compared to traditional designs. Wear-prone parts are made from upgraded wear-resistant materials, prolonging operational life and reducing both replacement costs and downtime.
-

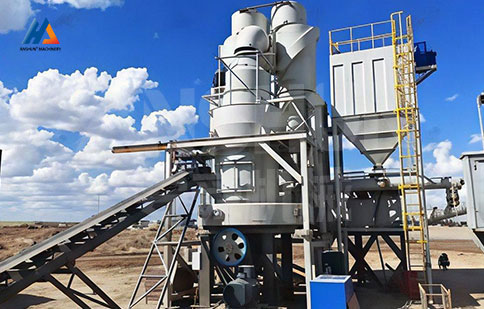

Diverse Classifier Options to Meet Various Fineness Requirements
Three optional classifier configurations—coarse powder, vane-disc, and cage-type ultrafine—are available to meet diverse user requirements regarding product fineness and to optimize the balance between fineness and output. Users can select either a vane-disc classifier or a cage-type classifier based on specific needs; variable frequency drives (VFDs) regulate rotational speed, allowing for adjustable fineness within the 80–600 mesh range. The vane-disc classifier offers low energy consumption and is suitable for producing coarse to medium-fine powders (up to approximately 200 mesh/D90).
-

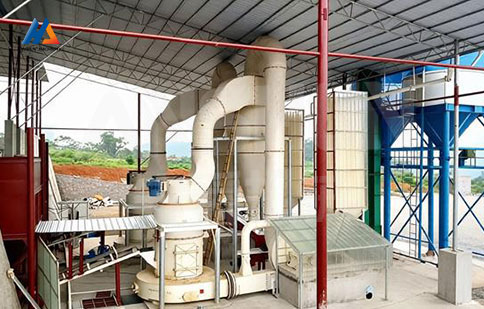

Upgraded Air Circulation and Eco-friendly Dust Removal Systems
The system employs a heavy-duty blower for efficient airflow regulation. Features such as curved air ducts and a resistance-free inlet volute minimize air resistance and ensure smooth material flow. The system operates without dust leakage; residual air is processed by a pulse-jet bag filter, which ensures rapid, automatic dust cleaning and high removal efficiency, maintaining a dust-free workshop environment.
-

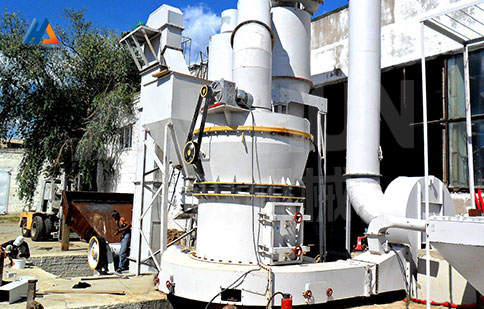

Optional Open-Circuit System
An open-circuit system configuration is available to meet specific user needs. This allows the milling system to operate under constant negative pressure, ensuring stable, continuous operation at a constant temperature—delivering safety, reliability, high efficiency, and energy savings.
-

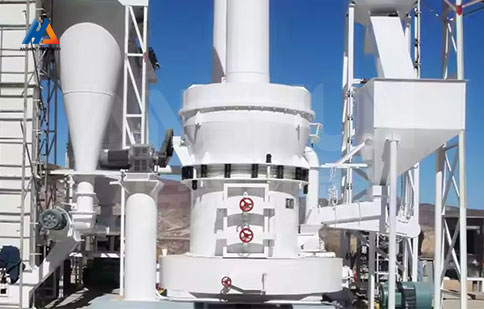

Optimized Drive and Lubrication Systems
The mill utilizes a new gear transmission system, ensuring reliable, smooth operation and facilitating ease of use and maintenance. The YGMQ1500 and YGMQ1900 models utilize an integrated split-type arc gear drive system; this reduces the number of transmission components and significantly improves drive efficiency. Additionally, the adoption of a circulating oil lubrication system eliminates the need for frequent manual lubrication, thereby reducing maintenance time and costs.

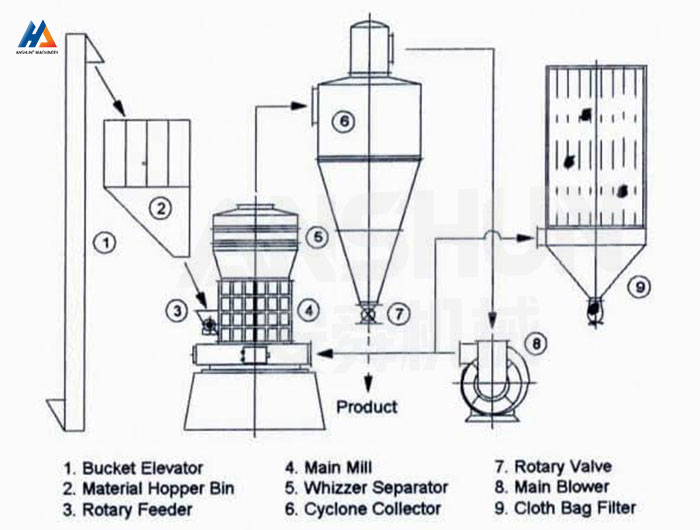

What Is the Working Principle of the YGM-Q European Type Strength Grinding Mill
Raw materials with suitable particle sizes are fed into the main machine via the feeding system (vibrating feeder, belt conveyor, screw feeder, or air-lock feeder, etc.). Under centrifugal force, the high-speed rotating grinding rollers roll tightly against the grinding ring.
Shovel blades scoop up the materials and send them into the grinding zone formed between the rollers and the ring, where the materials are pulverized into powder under pressure. Driven by the blower, the ground powder is blown upward through the classifier. Qualified powder passes through the classifier, while unqualified powder is intercepted and returns to the grinding chamber for further grinding.
